Query your fleet

This guide explains how to query the resources Hub aggregates from your connected control planes. It also covers inspecting a single resource in detail and saving a query as a lens your team can reuse.

Prerequisites

A Hub install with at least one connected control plane or connected space.
The base URL clients use to reach hub-core, the same value as hub-core.api.externalURL.
A Hub access token for an account with read access to at least one realm.

The examples use two shell variables:

HUB_URL=https://api.<your-domain>
TOKEN=<your-hub-access-token>

Step 1: List the aggregated resources

Request the resource list.
```
curl -s "$HUB_URL/apis/hub.upbound.io/v1beta1/resources" \
  -H "Authorization: Bearer $TOKEN"
```
Each item carries the resource's own identity in source, its control plane and realm in location, and the aggregation metadata in hub.
Read the count from the response metadata.
```
{
  "kind": "ResourceList",
  "apiVersion": "hub.upbound.io/v1beta1",
  "metadata": {
    "total": { "count": 614, "relation": "eq" },
    "page": 1,
    "pageSize": 10
  }
}
```
total.count is the number of resources matching the query, not the number returned. Page through the matches with page and pageSize.

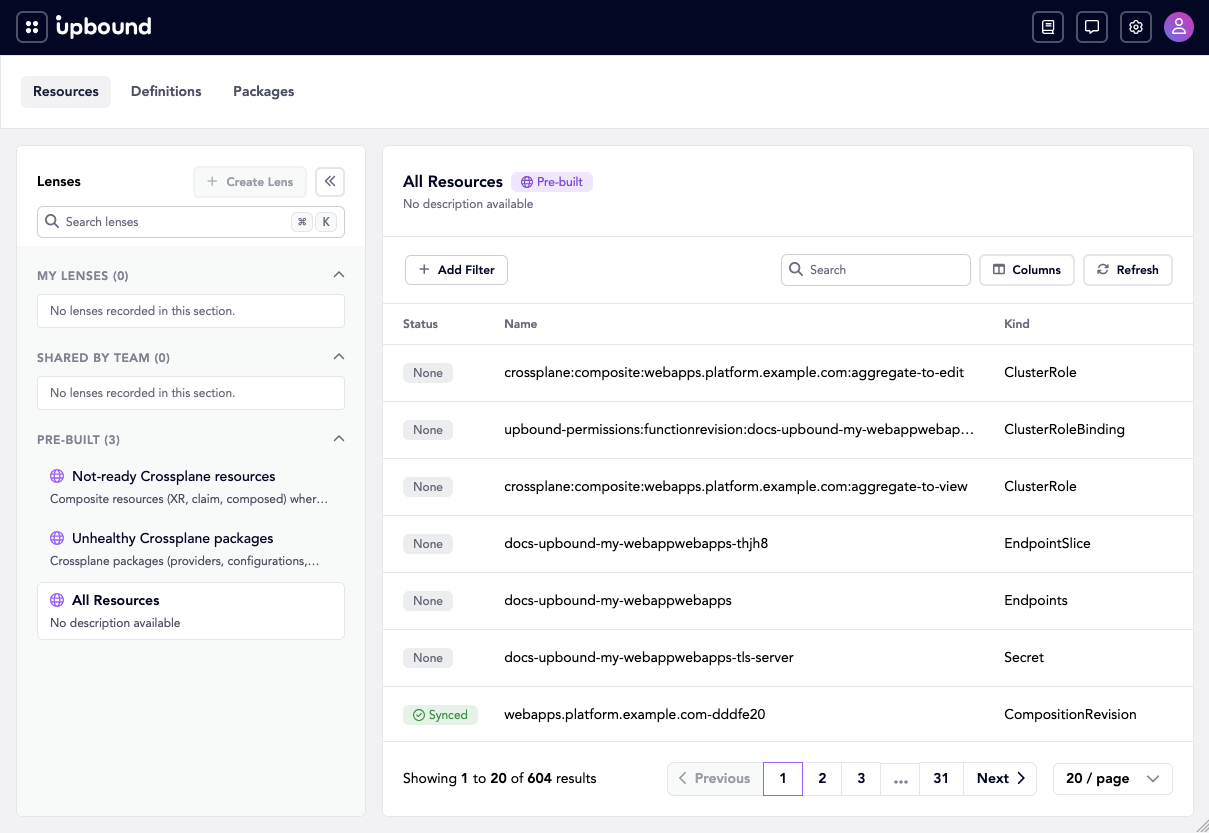

The Console renders the same list at /explore/resources:

warning

Use hub.upbound.io/v1beta1. The v1alpha1 version accepts the filter parameter but ignores it, so a filtered query sent to v1alpha1 returns your whole estate.

Step 2: Narrow the list

Search by name with search.

curl -sG "$HUB_URL/apis/hub.upbound.io/v1beta1/resources" \
  --data-urlencode 'search=kubernetes' \
  -H "Authorization: Bearer $TOKEN"

Filter with a CEL expression in filter.
```
curl -sG "$HUB_URL/apis/hub.upbound.io/v1beta1/resources" \
  --data-urlencode 'filter=kind == "Pod"' \
  --data-urlencode 'pageSize=25' \
  -H "Authorization: Bearer $TOKEN"
```
Reference resource fields as bare identifiers, such as kind or namespace.

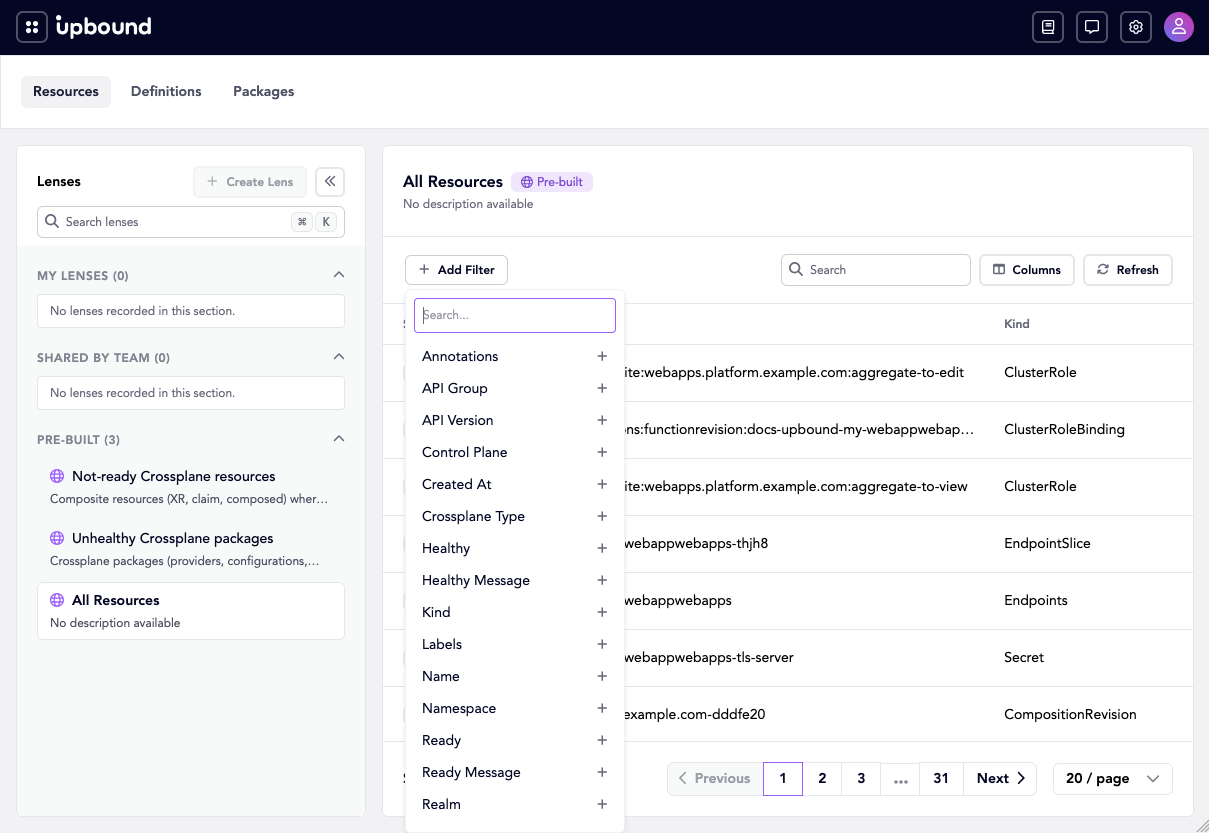

The Console builds the same narrowing through Add Filter, which lists the fields you can filter on:

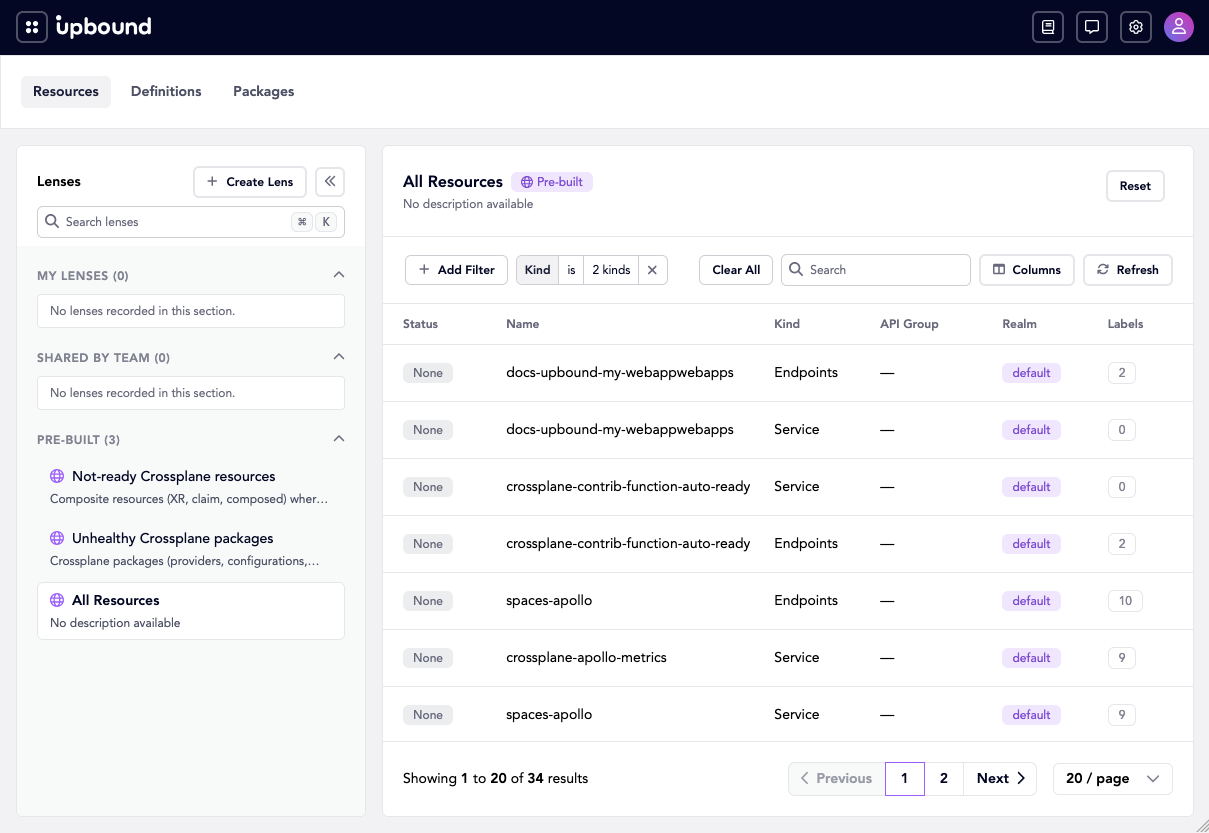

An applied filter shows as a chip over the list, with the match count updated:
Check message if a query returns no items.

An invalid expression returns the CEL parse error rather than an empty result:
```
{
  "message": "ERROR: <input>:1:1: undeclared reference to 'source'\n | source.kind == \"Pod\"\n | ^"
}
```

Step 3: Inspect one resource

Get the resource by the name Hub assigned it.

The name in metadata.name is Hub's identifier, such as default.default.eb8a0fbd0b83f39b, not the resource's own name.
```
curl -s "$HUB_URL/apis/hub.upbound.io/v1beta1/resources/$NAME" \
  -H "Authorization: Bearer $TOKEN"
```

Read its events.

curl -s "$HUB_URL/apis/hub.upbound.io/v1beta1/resources/$NAME/events" \
  -H "Authorization: Bearer $TOKEN"

Follow its relationships.
```
curl -s "$HUB_URL/apis/hub.upbound.io/v1beta1/resourcerelationships/$NAME" \
  -H "Authorization: Bearer $TOKEN"
```
resourcerelationships returns the resources one resource composes, the ones it references, and the ones that reference it. For the whole composition tree below a composite resource, request resourcerelationshiptrees/$NAME instead. Both endpoints answer for a single resource, so a request without a name fails.

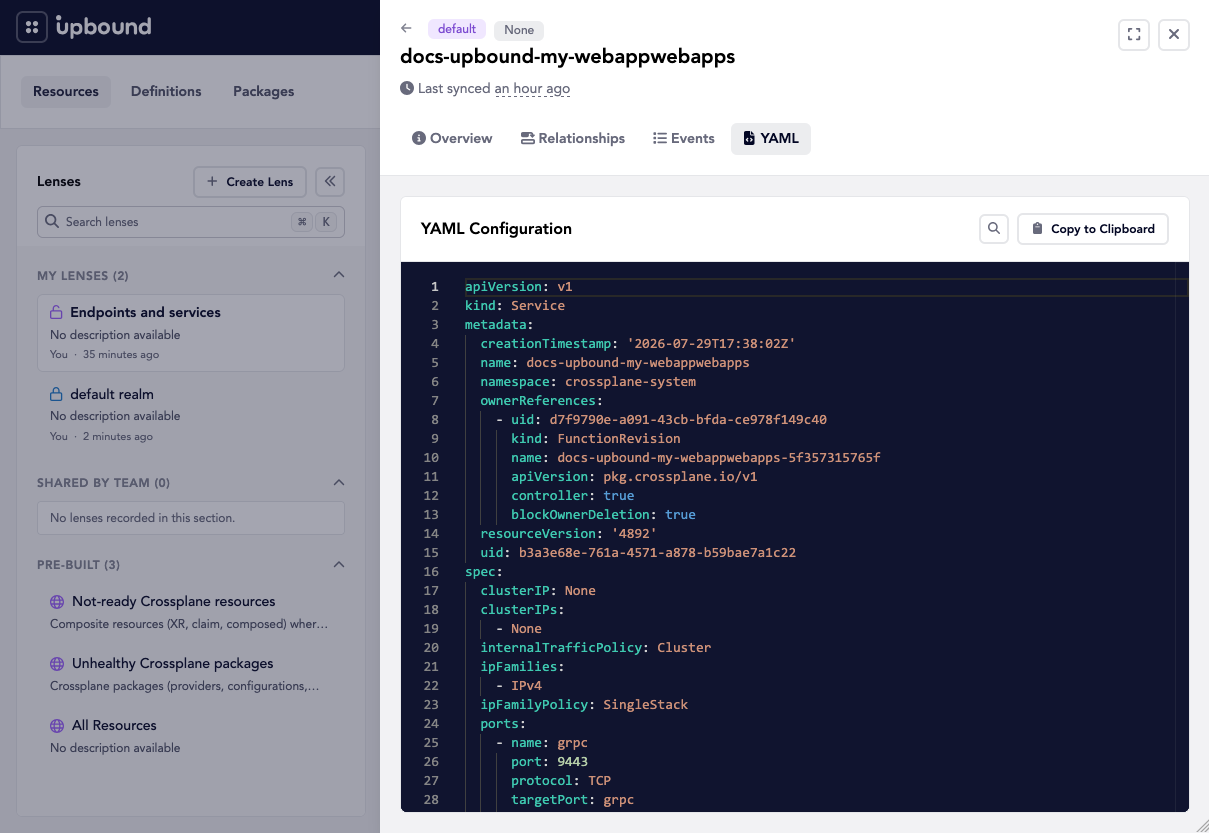

The Console shows all three in one detail drawer, with the object itself on the YAML tab:

Step 4: Count without listing

Post an empty spec to resourcestats to count everything the caller can see.

curl -s -X POST "$HUB_URL/apis/hub.upbound.io/v1beta1/resourcestats" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"apiVersion":"hub.upbound.io/v1beta1","kind":"ResourceStats","spec":{}}'

The response groups the count by condition, which is what the Console dashboard renders:

{
  "results": {
    "summary": {
      "totalCount": 614,
      "readyTrue": 27,
      "readyFalse": 0,
      "readyUnknown": 587,
      "syncedTrue": 2,
      "syncedFalse": 0,
      "syncedUnknown": 612,
      "healthyTrue": 4,
      "healthyFalse": 0,
      "healthyUnknown": 610
    }
  }
}

A high readyUnknown count is expected. Kubernetes resources that don't report a Ready condition, such as Endpoints, count as unknown.

Step 5: Save the query as a lens

A lens stores a filter so you can apply it in the Console instead of rebuilding the query.

Create the lens.

curl -s -X POST "$HUB_URL/apis/hub.upbound.io/v1beta1/lenses" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "apiVersion": "hub.upbound.io/v1beta1",
    "kind": "Lens",
    "metadata": {
      "name": "team-a-pods",
      "annotations": { "hub.upbound.io/shared": "true" }
    },
    "spec": {
      "displayName": "Team A pods",
      "description": "Pods the platform team owns.",
      "target": { "kind": "Resource", "apiVersion": "hub.upbound.io/v1beta1" },
      "filter": { "fields": [ { "field": "kind", "values": ["Pod"] } ] }
    }
  }'

Hub records who created the lens in its status:

{
  "status": {
    "lastUpdatedAt": "2026-07-29T16:50:20Z",
    "createdBy": "keycloak:admin@hub.demo",
    "lastUpdatedBy": "keycloak:admin@hub.demo"
  }
}

Set hub.upbound.io/shared: "true" to give the whole organization access to the lens. Without it, the lens belongs to you.

Confirm the lens exists.
```
curl -s "$HUB_URL/apis/hub.upbound.io/v1beta1/lenses" \
  -H "Authorization: Bearer $TOKEN"
```
Your lens appears alongside the two lenses Hub includes, crossplane-not-ready and packages-unhealthy. Those two carry the hub.upbound.io/source: upbound annotation.
Apply the lens in the Console, on the /explore/resources page.

The sidebar groups the lenses you created separately from the shared ones and the ones Hub includes:

A saved lens selected in the Console sidebar

Delete the lens when the team no longer needs it.

curl -s -X DELETE "$HUB_URL/apis/hub.upbound.io/v1beta1/lenses/team-a-pods" \
  -H "Authorization: Bearer $TOKEN"

A successful delete returns 204 with no body.

Troubleshoot

A query that returns fewer resources than you expect usually means one of three things:

The caller lacks access. Insights filters every response by realm permissions, so two users running one query get different counts. See RBAC.
The version ignores your filter. v1alpha1 accepts filter and ignores it. Use v1beta1.
The record is stale. Insights serves aggregated data, not a live read. Check hub.syncLagSeconds on the resource to see how far behind the record fell.
